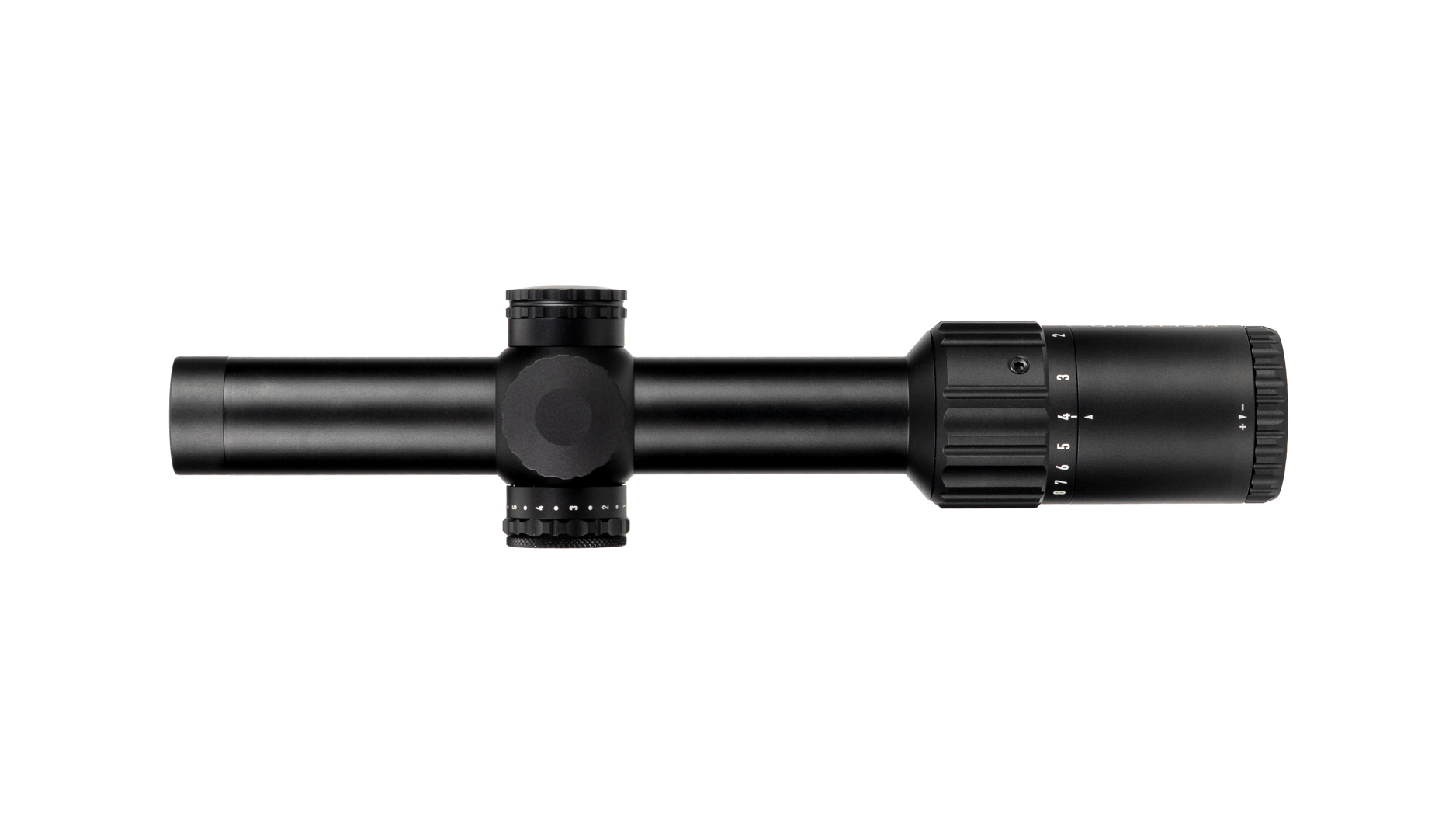

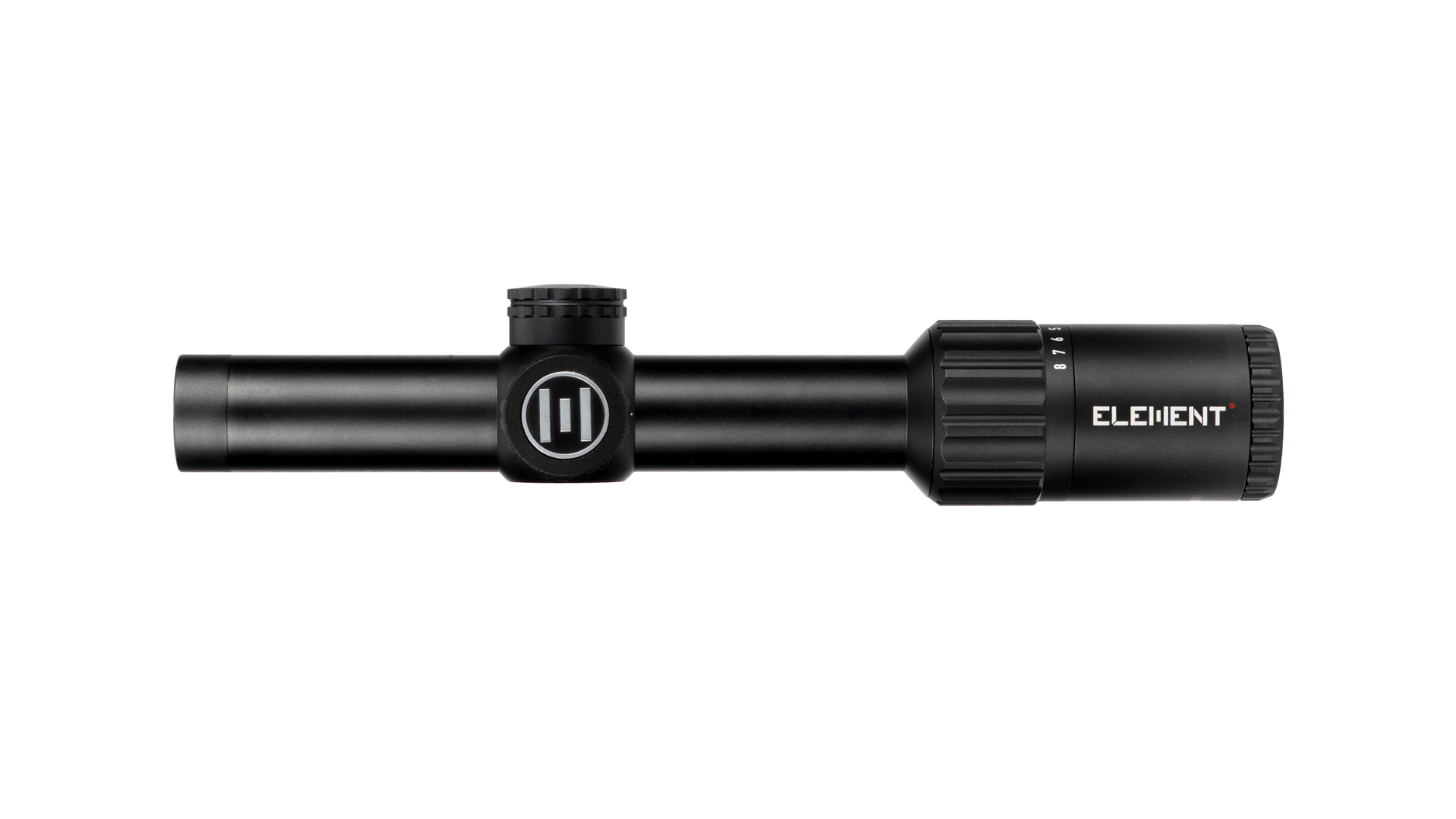

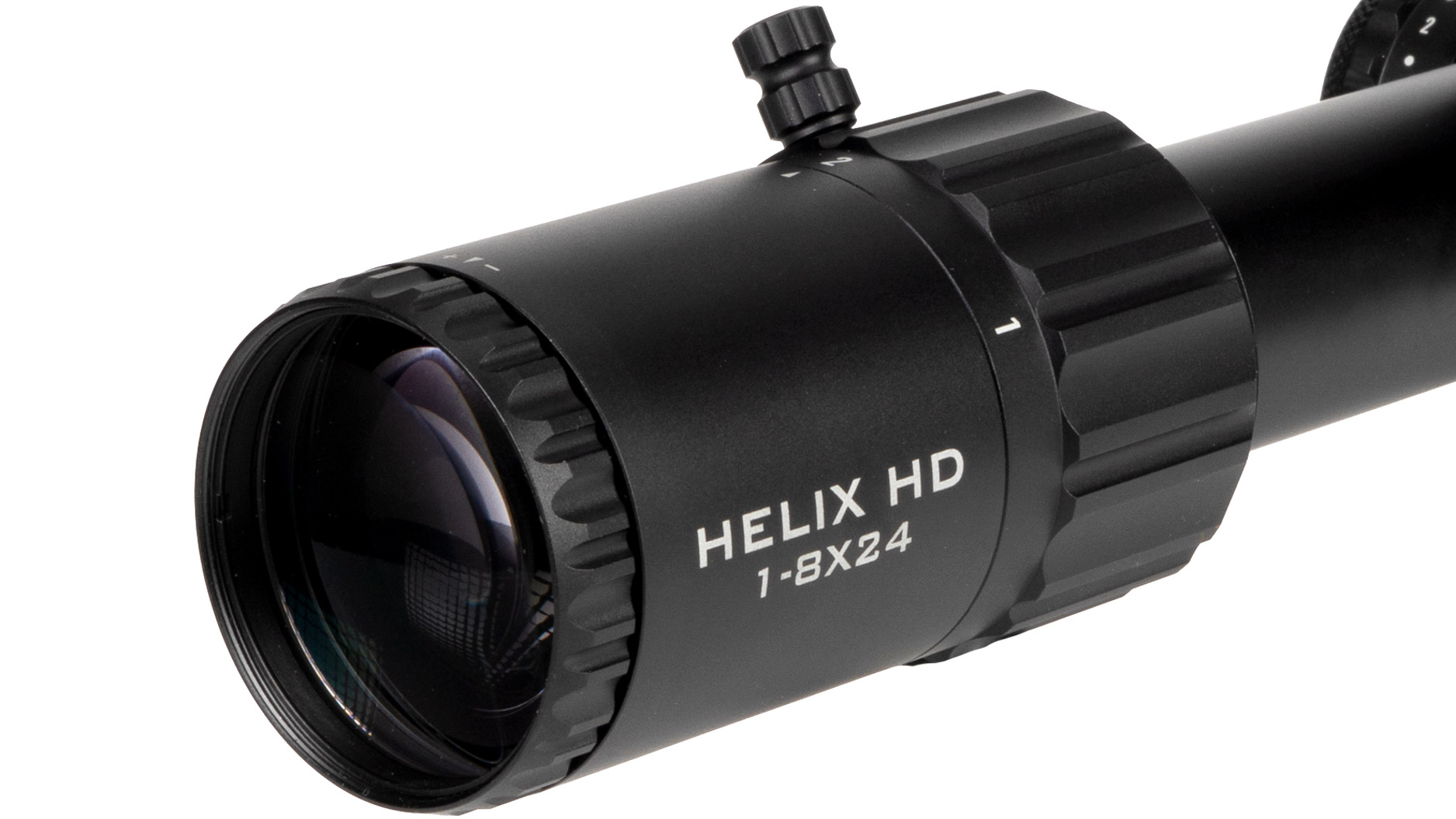

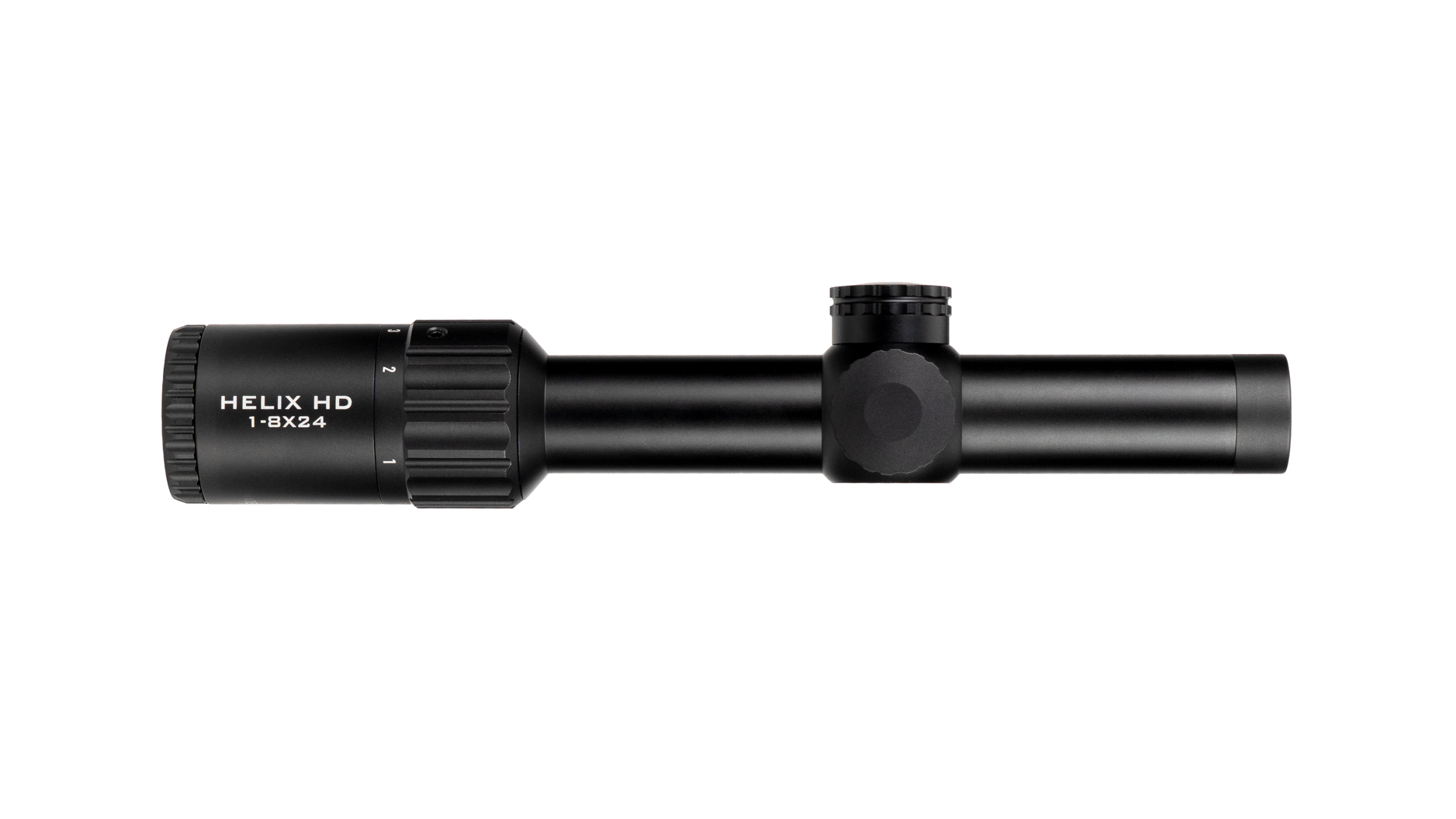

HELIX HD 1-8×24

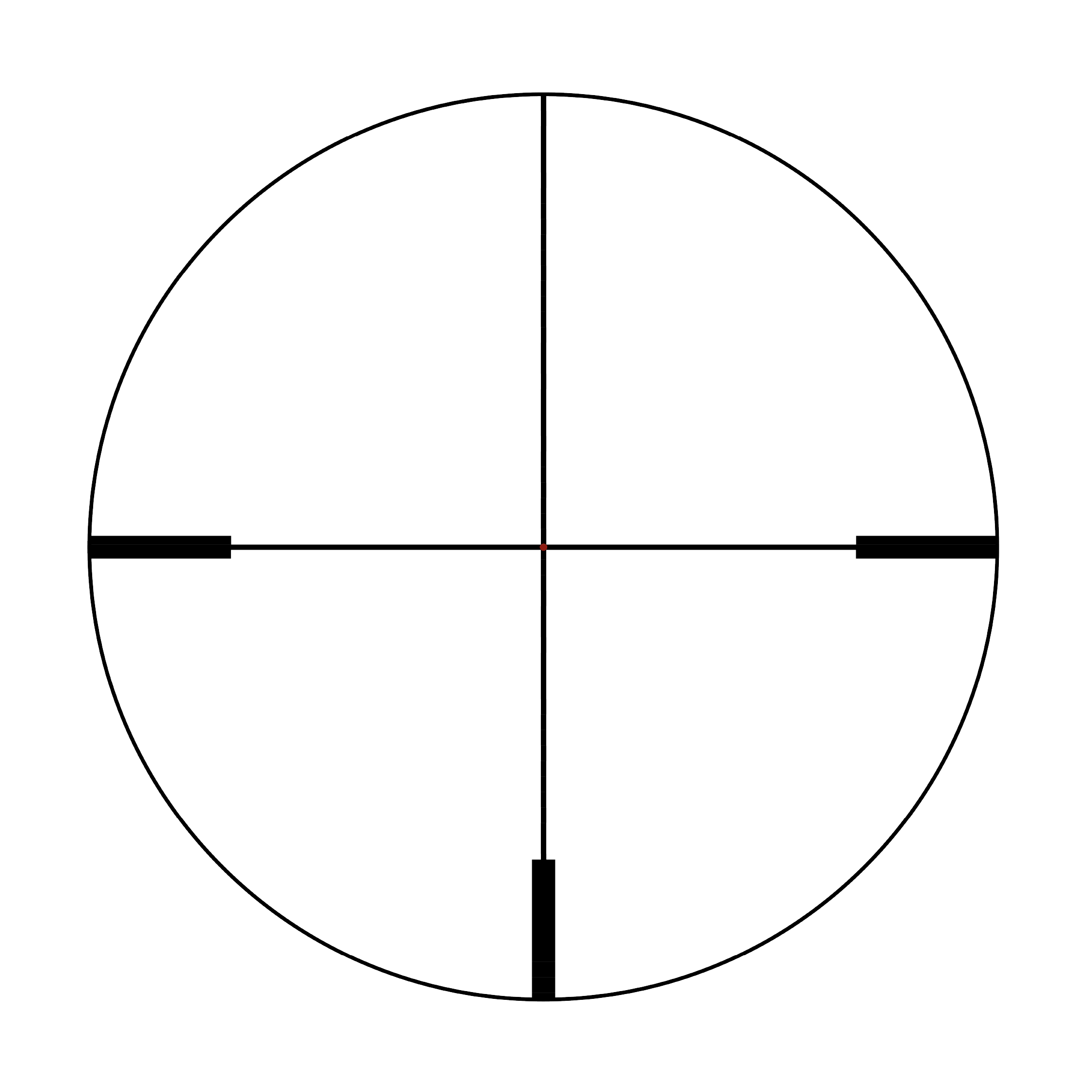

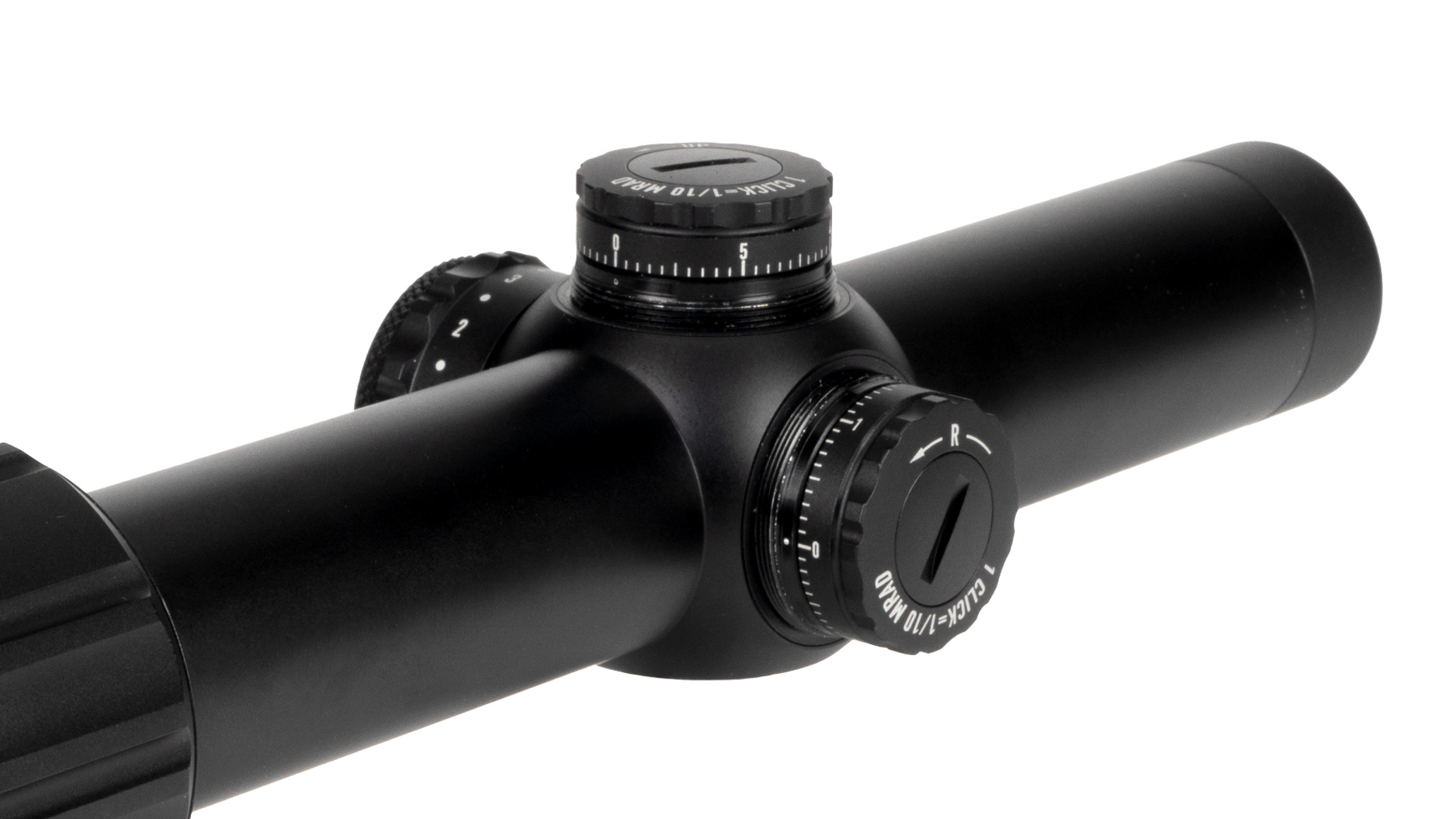

The Helix HD 1-8×24 is a LPVO (Low Power Variable Optic) designed for hunting and tactical applications at close to intermediate ranges. This model features a L4A reticle with fiber optic illumination for a fine, bright aim point in any lighting condition. We’ve capped both the windage and elevation turrets for a more compact design, and illumination is controlled via a 11-step rotary dial. Stringent quality control procedures give you peace of mind when taking that critical shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!
Category: Riflescopes
WARRANTY
STRONG AND RUGGED DESIGN
ADJUSTABLE DIOPTER
SECOND FOCAL PLANE
HD OPTICAL SYSTEM
3OMM BODY TUBE
ADVANCED FULLY MULTI-COATED LENSES
| MAGNIFICATION RANGE | 1-8x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 24mm |
| EXIT PUPIL | 8.5-3mm |
| EYE RELIEF | 95mm (3.74”) |
| FIELD OF VIEW | 41-5.13m@100m |
| CLICK VALUE | 1/10 MRAD (6 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE | 40 MRAD |
| WINDAGE ADJUSTMENT RANGE | 40 MRAD |
| PARALLAX | FIXED 100m |
| LENGTH | 11.18” | 284mm |
| WEIGHT | 18.3oz | 519g |
